Smart and Adaptable Lift Solutions
Platform Lifts solutions that easily adapt to integrate with residential homes or public and commercial buildings.
Platform Lifts

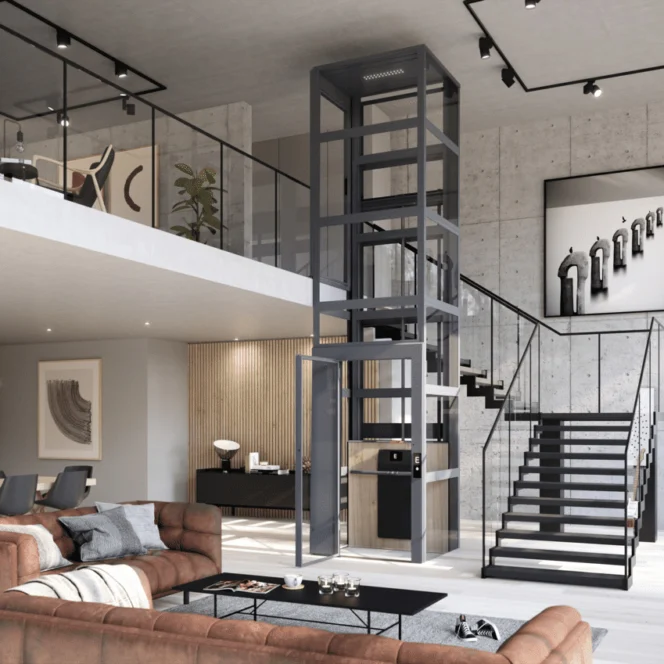

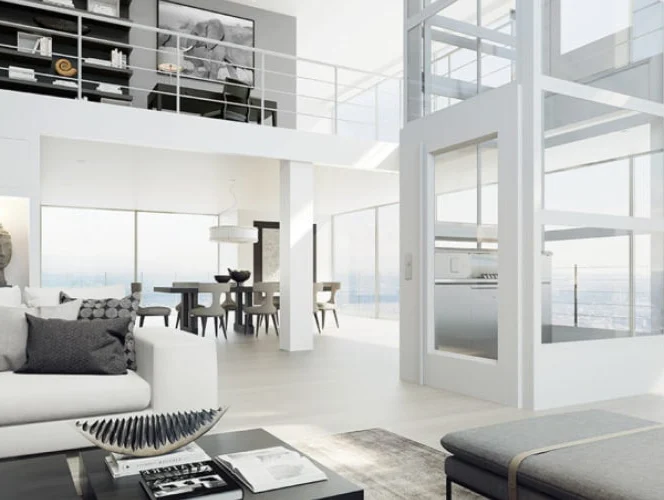

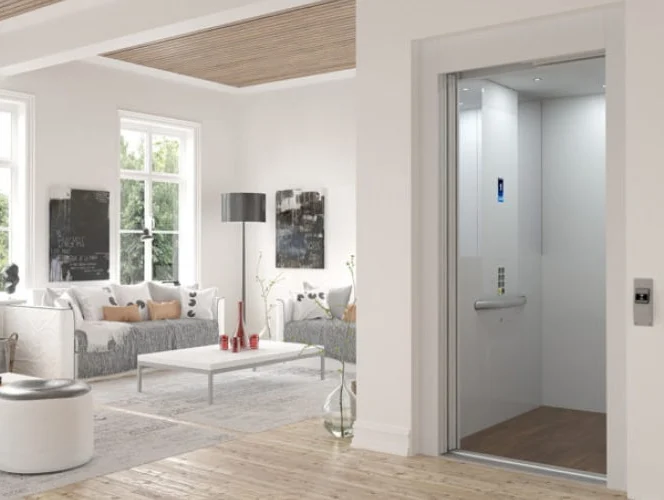

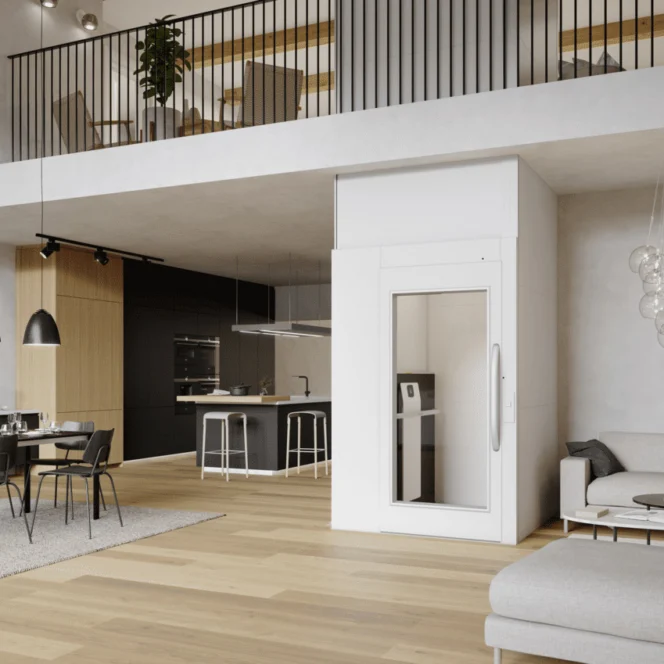

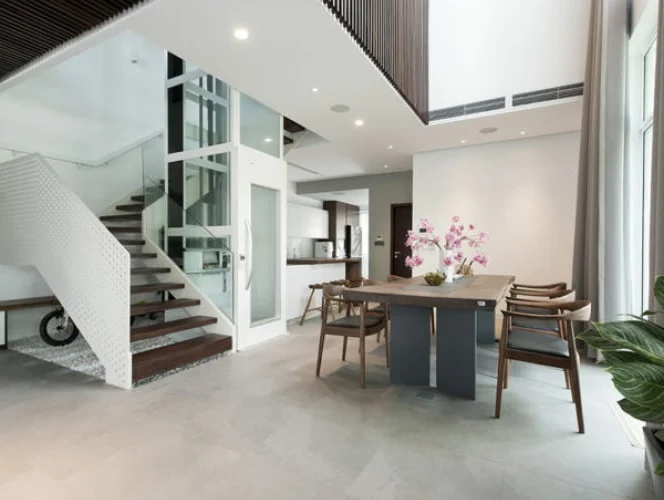

A4000 – is a great design piece, which will add beauty and comfort to your home.

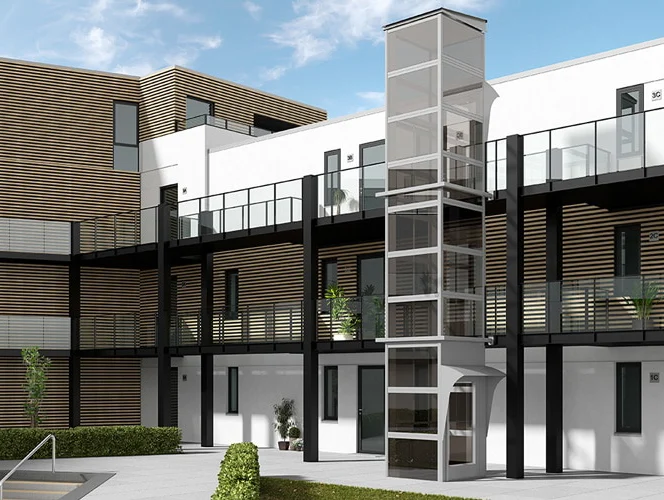

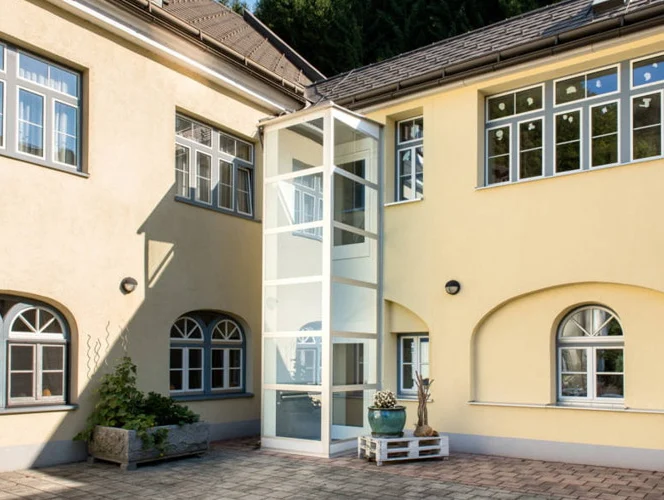

A5000 – is a smart and adaptable lift solution for private and public installations.

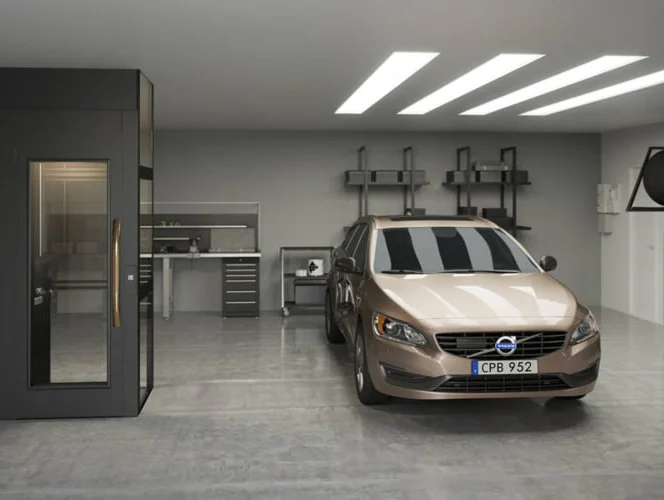

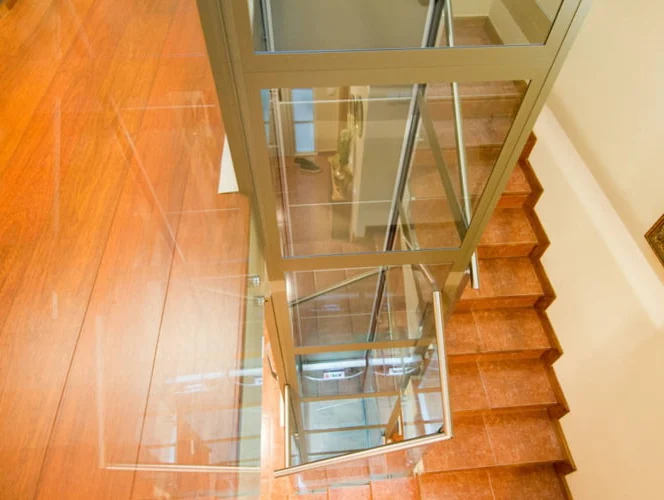

The Air ® – a versatile enclosed platform lift that can be used indoors, offering a choice of 11 different platform sizes and a maximum travel distance of 13 metres. With weight capacities of 300/400/500 kg, this lift is adaptable to fit any home size and budget.
Benefits of a Pollock Home Lift
Quick Installation
Typically installing your home lifts takes 1 – 2 days and there should be no requirement to redecorate one your home lift is installed.
Full Warranty
Our home lifts come with a 12-month warranty for all parts and labour. In the unlikely event of a breakdown our support team are available 24 hours per day, 365 days per year.
A Perfect Fit
Our home lifts come in a range of sizes to suit individual needs as well as the available space in your home.
Back-Up Power
In the event of a power cut, your home lift has a dedicated battery back-up which will always return to the ground floor where you can exit the car using a manual release.
Service Agreement
Service agreements are available post installation to ensure that your lift is serviced and operating in a safely for years to come.
Expert Design
Our range of home lifts has been created to suit different needs and budgets using knowledge gleaned from users, healthcare professionals and our own experience.
Specifications
| Lift location | Indoors / Outdoors* |
| Rated load kg | 300 – 500kg |
| Rated speed (m/sec) | Max 0.15 |
| Travel height | Up to 13 m |
| Min headroom at top landing | 2250/1100mm |
| Pit depth without ramp | 50 mm recess |
| Maximum number of stops | 6 stops |
| Doors and gates | Single hinged |
| Door clear opening (standard, wxd) | 900 x 2000 mm |
| Gate clear opening (standard, wxd) | 900 x 1100 mm |
| Drive system | Screw and nut, with safety nut |
| Control system | Micro computer based system |
| Standard power supply | Freq. 1×230/240V 50-60Hz 16A Soft |
| Motor supply | Jackson |
| Eve | 2.2KW |
Flexible Configuration
Pollock Platform Lifts offers a great choice of platform sizes, door models, finishes and accessories so that you can adapt the lift configuration to your taste and requirements.
| A4000 Small size platform lift – low back | |
| Platform sizes (w×d); | Rated load |
| 800 × 830 | 300 kg |
| 1000 × 830 | 300 kg |
| 1000 × 930 | 300 kg |
| 1100 × 930 | 300 kg |
| A5000 Platform lift – low back | |
| Platform sizes (w×d); | Rated load |
| 800 × 1217 | 400-500 kg |
| 900 × 1467 | 400-500 kg |
| 1000 × 1267 | 400-500 kg |
| 1100 × 1400 | 400-500 kg |
| 1000 × 1467 | 400-500 kg |
| 1100 × 1400 | 400-500 kg |
| 1000 × 1467 | 400-500 kg |
| 1100 × 1597 | 400-500 kg |
| 1000 × 1967 | 400-500 kg |
AIR Platform Lift – low back | |
Platform size, mm (w x d) | Rated load |
800 x 830 | 300 kg, 3 persons |
1000 x 830 | 300 kg, 3 persons |
1000 x 930 | 300 kg, 3 persons |
1100 x 930 | 300 kg, 3 persons |
800 x 1217 | 400-500 kg, 4-5 persons |
900 x 1467 | 400-500 kg, 4-5 persons |
1000 x 1267 | 400-500 kg, 4-5 persons |
1000 x 1367 | 400-500 kg, 4-5 persons |
1000 x 1467 | 400-500 kg, 4-5 persons |
1100 x 1467 | 400-500 kg, 4-5 persons |
1100 x 1597 | 400-500 kg, 4-5 persons |
